Specifications
Grand Tuscan Louvered Pergola
Dimensions
- Overall Product Weight
- Custom
- Height Options
- Fixed Height
- Max Coverage Area
- 120 sq ft
Materials
- Frame
- Aluminum
- Coating
- Double Layer Powder Coating
- Finish Options
- Corrosion Resistant
- Yes
- Moisture Resistant
- Yes
- UV Resistant
- Yes
- Fade Resistant
- Yes
- Fire Resistant
- Yes
Durability
- Rain Protection
- Built-In Gutter
- Maintenance
- Wash with water & mild soap
- Engineering Certifications
- TÜV
- Warranty
- 6 Years (+1 with registration)

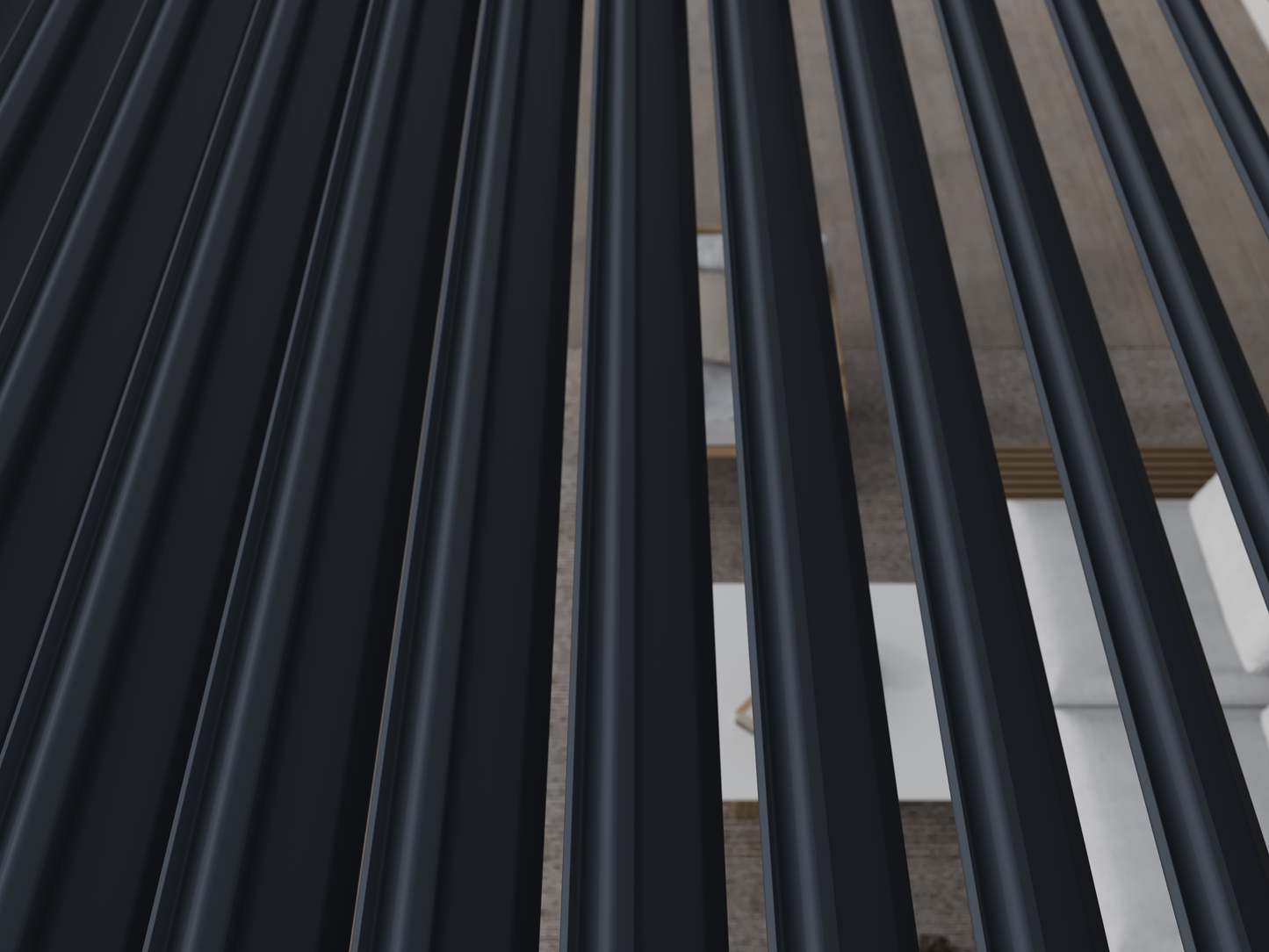

Roof system
- Finish Options
- Roof Drive System
- Manual crank
- Electricity Required
- No

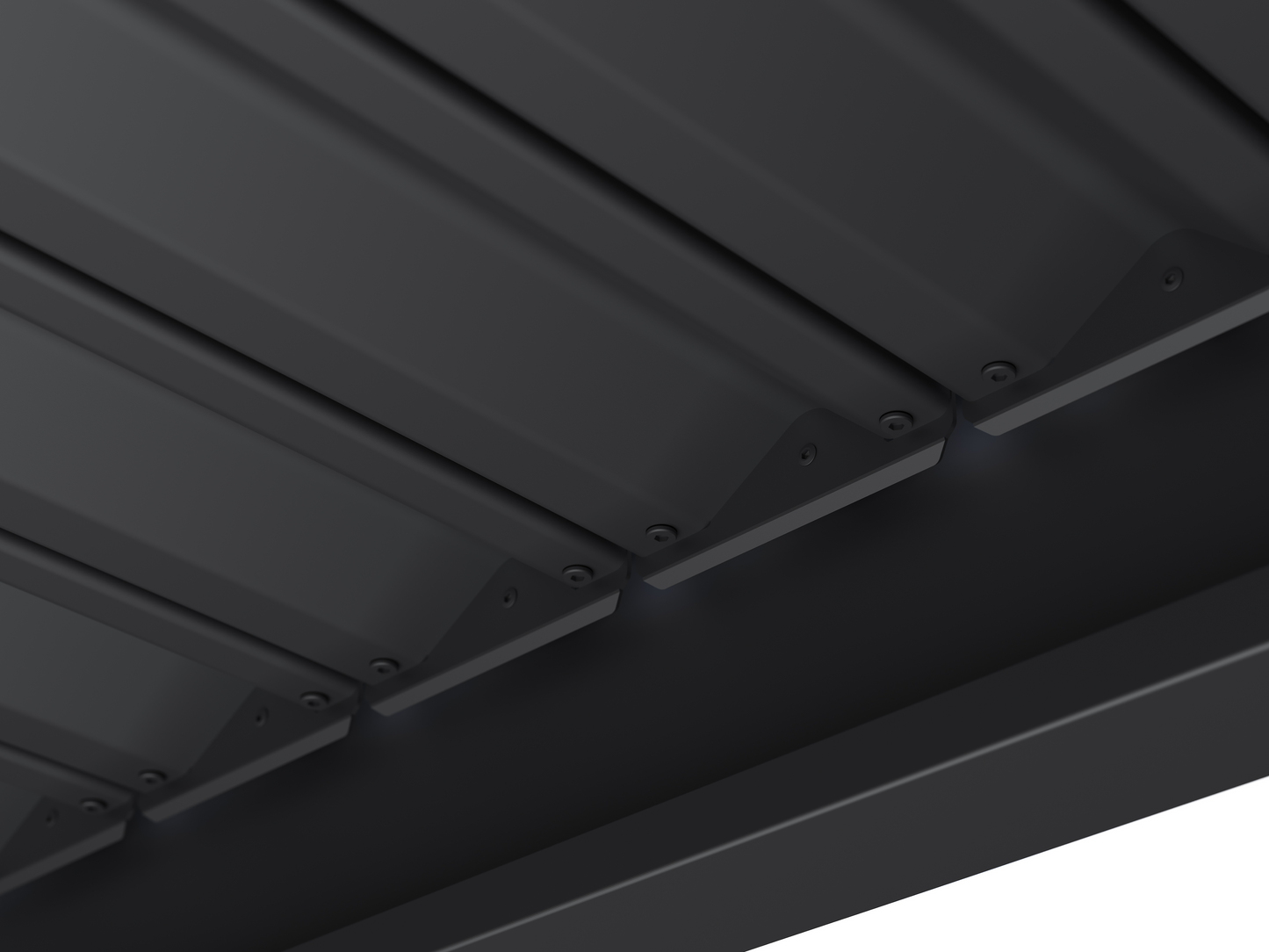

- Rain Protection
- Water-tight when closed

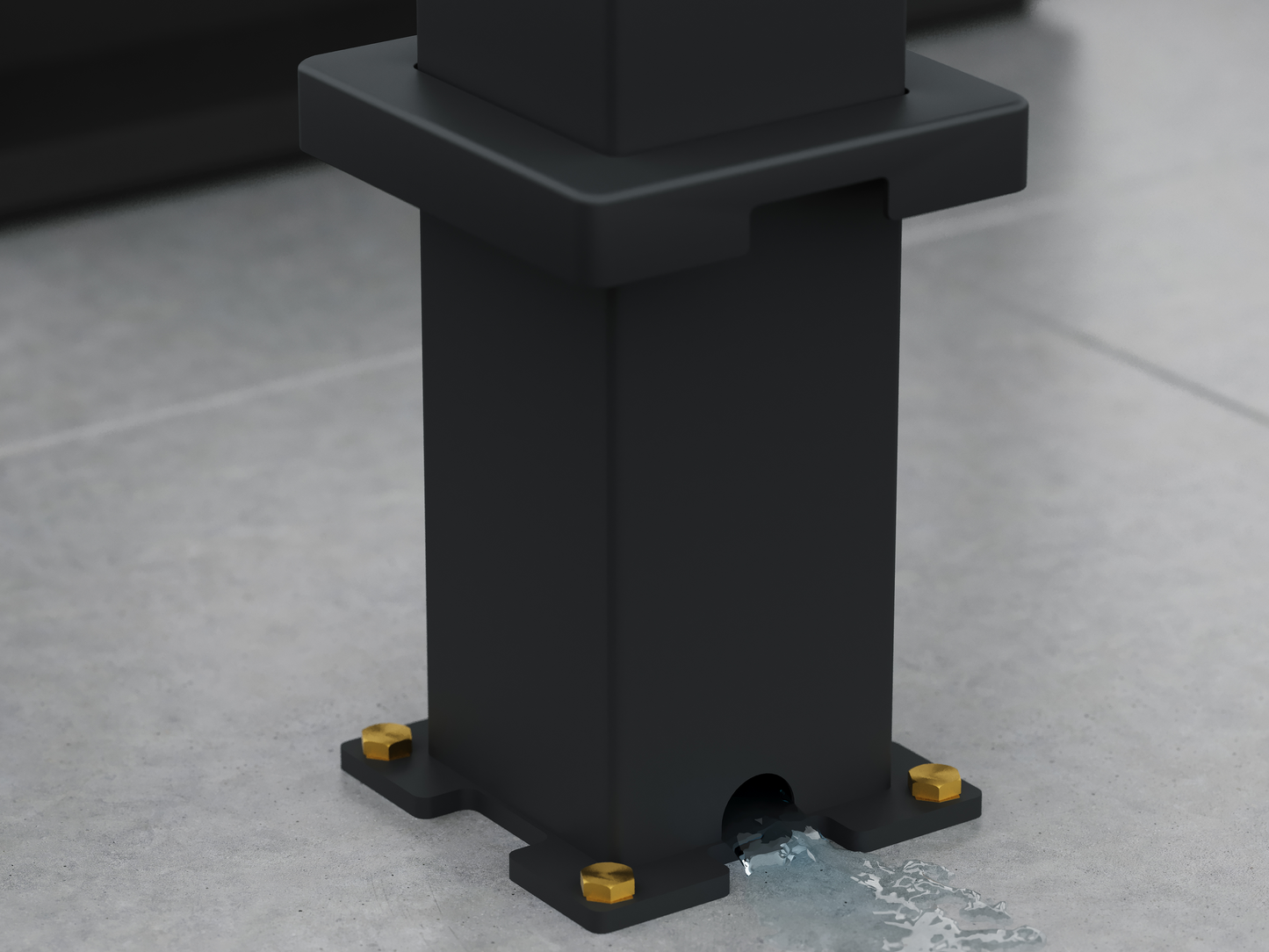

- Drainage
- Integrated louver drainage and gutter

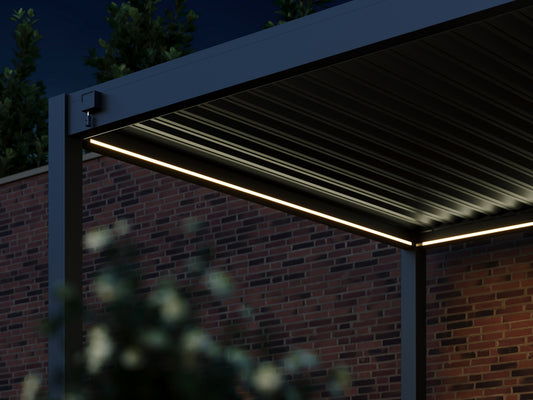

Lighting
- Lighting Option
- Peripheral Beam LED optional
- Dimmable
- Yes
- Remote Control Operated
- Yes
- Max LED Brightness
- 880 lumens
- Color Temperature
- 3000k
- Light Color Options
- RGBW
Controls
- Remote Control
- Only if LED lighting is added
- Remote Range
- 228 ft
- Alexa / Siri / Google Compatibility
- No
Installation
- Difficulty
- Moderate
- Assembly Time
- 4 hours
- Installation Surface
- Concrete, wood deck with concrete footings, patio pavers with concrete footings
- Anchoring Hardware
- Included (expansion bolts, base plates, screws)
- Electricity Required
- No
- Professional Assembly
- Optional
- Additional Tools Required
- Tape Measure, 2 Small Step Ladders, Work Gloves, Wooden Mallet, safety goggles, Scissors and knife, Phillips Screwdriver, Liquid soap or WD40 Lubricant, Spirit Level, Silicon Gel
- Mounting
- Freestanding
Grand Style. Grand Performance
Crafted for those who appreciate both beauty and performance, this louvered pergola makes a stunning statement in any backyard, patio, or poolside retreat.
Dimensions
Engineered for spacious comfort and bold architectural impact, the Grand Tuscan is available in three generous sizes to suit any outdoor setting.

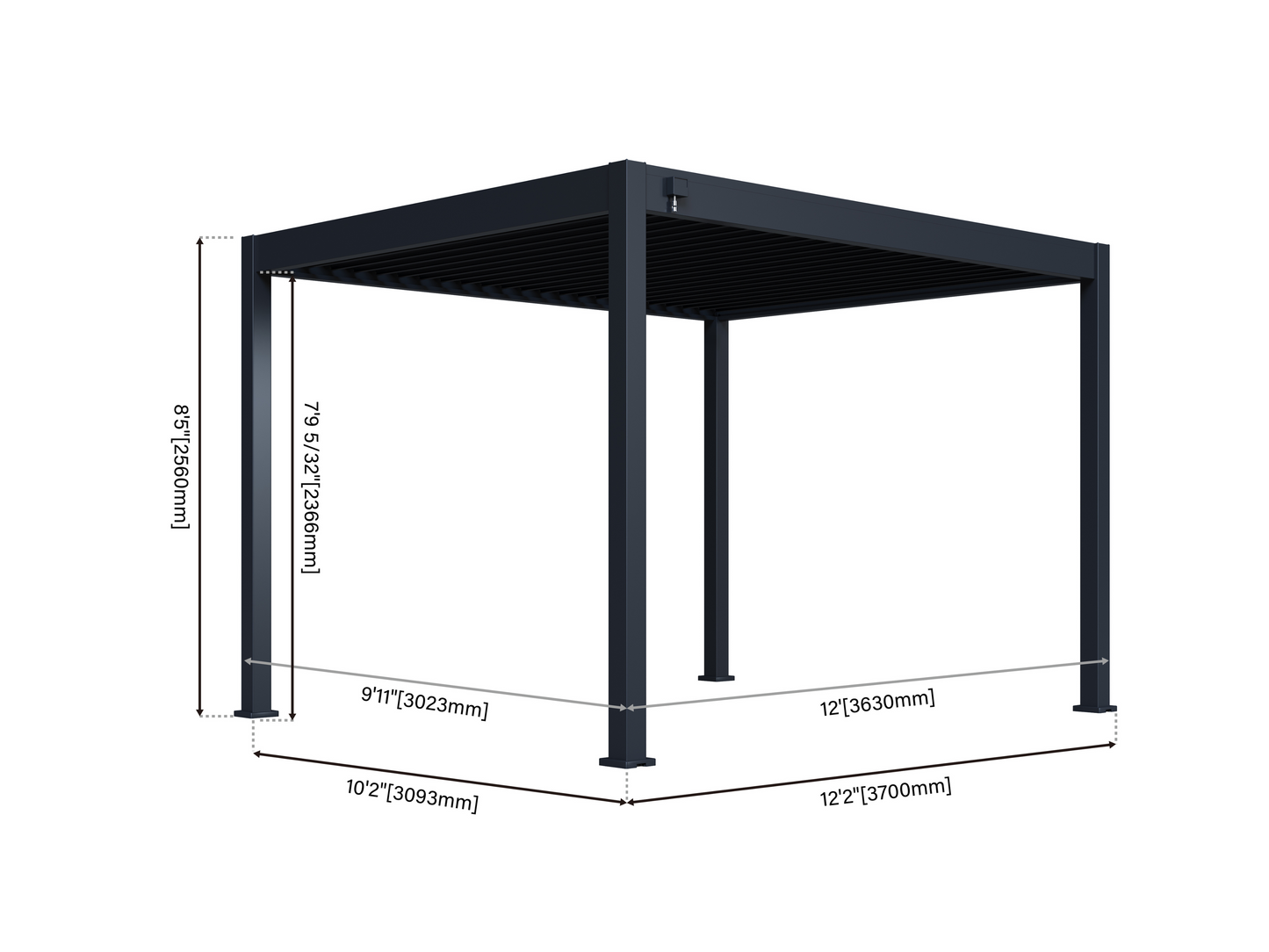

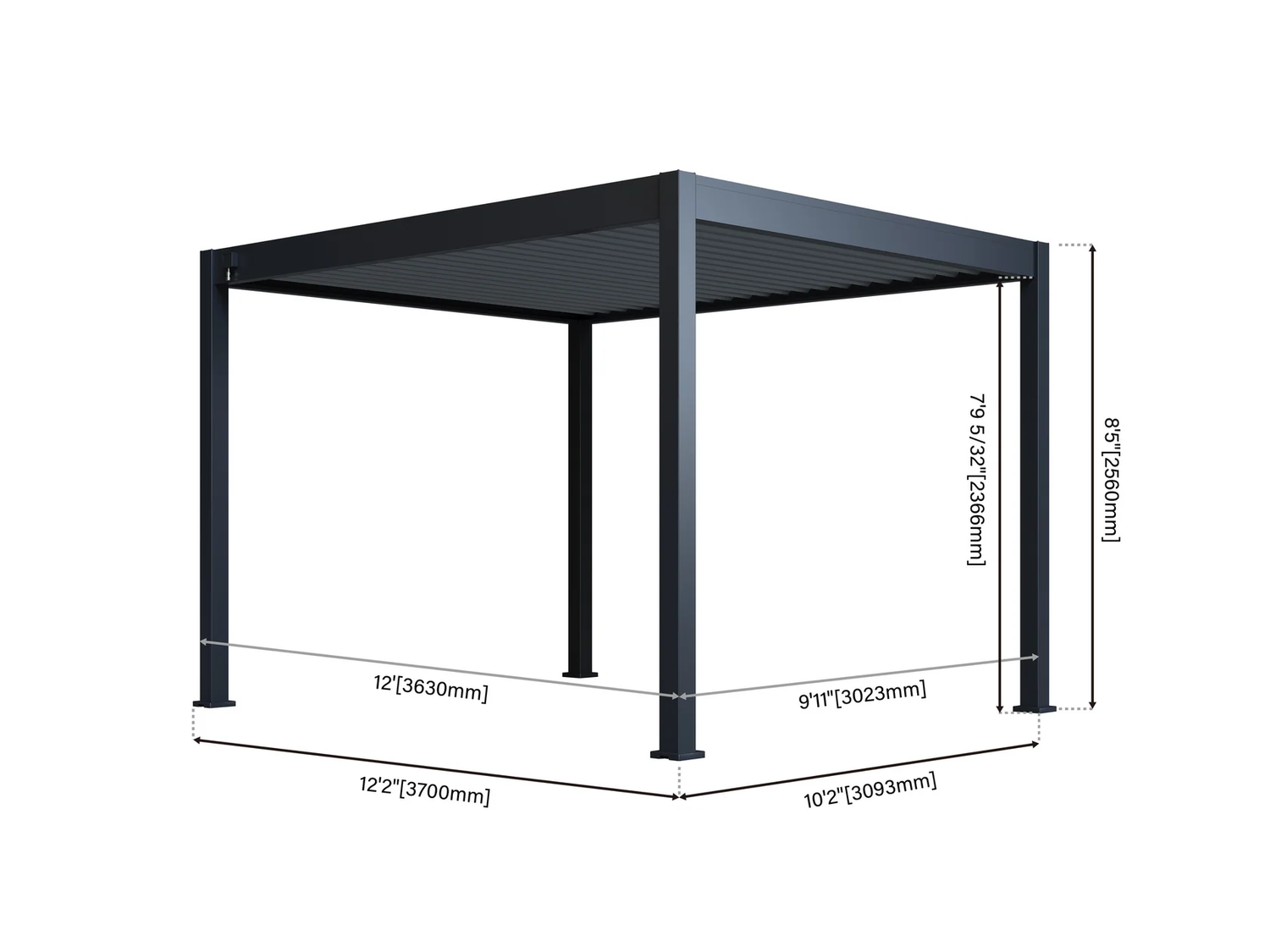

10’ x 12’ Dimension
Standard size with 4 structural posts.
Perfectly proportioned for patios or smaller outdoor spaces.

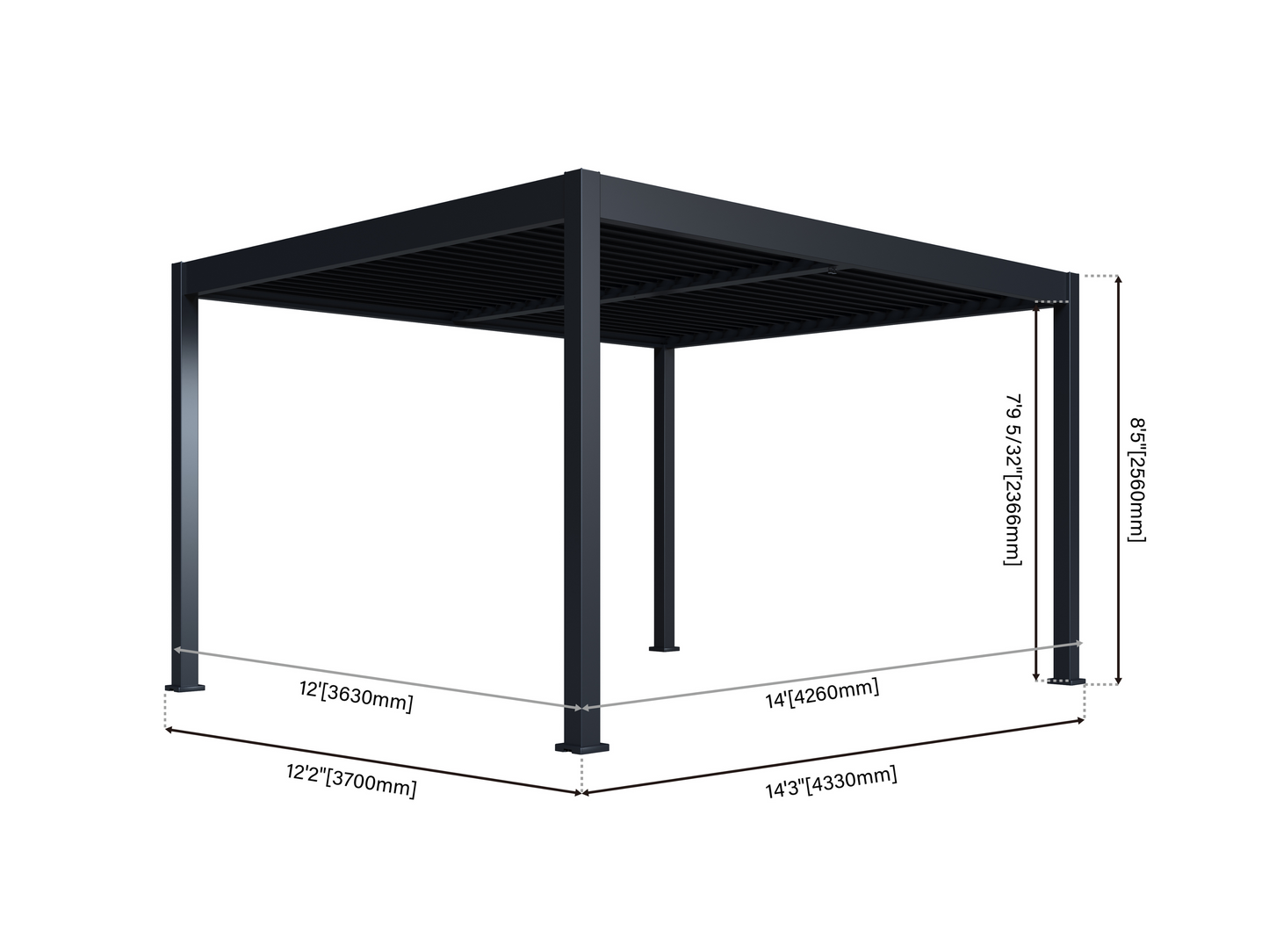

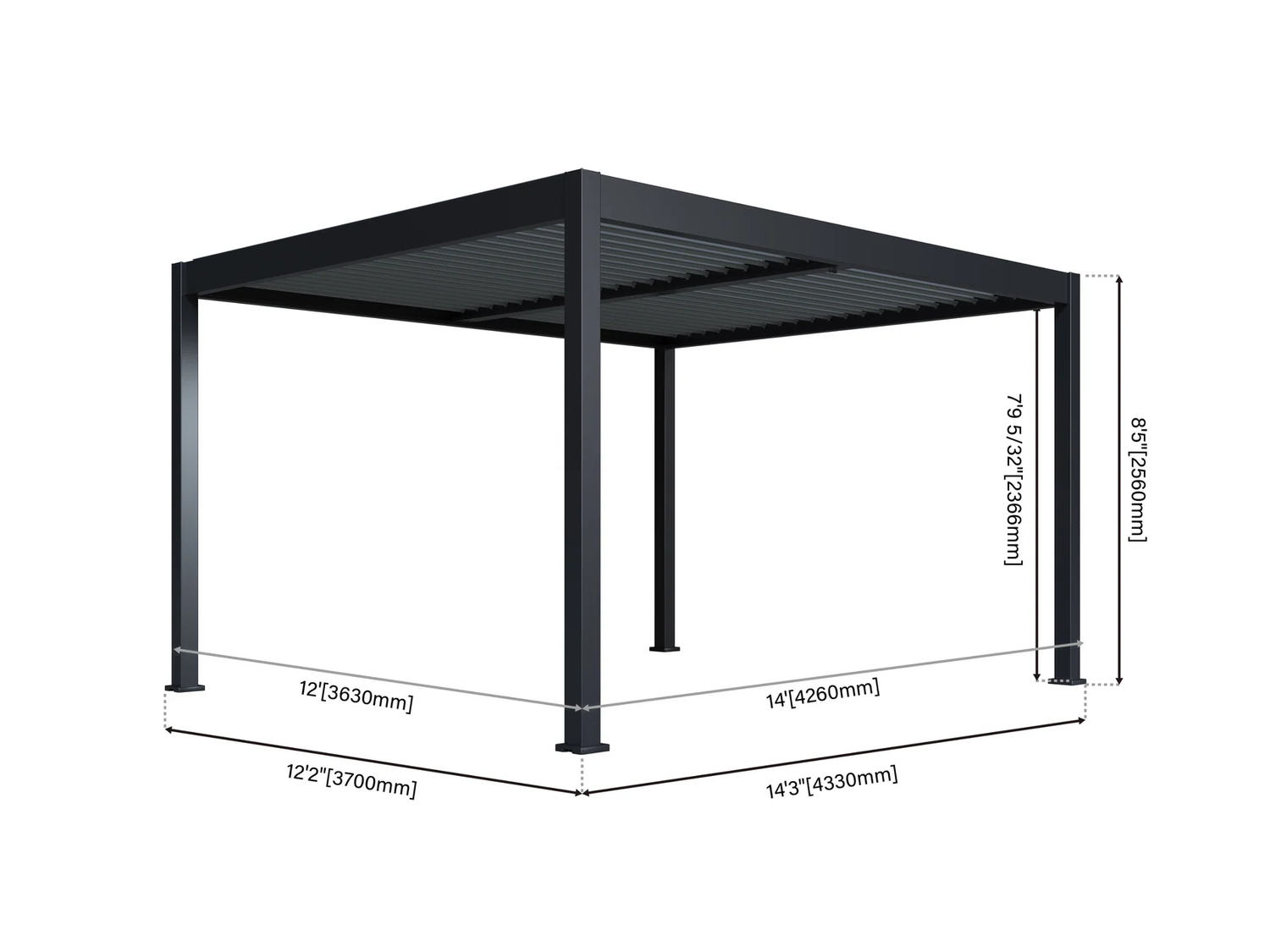

12’ x 14’ Dimension
Includes 4 posts with a reinforced center rail.
Designed for added stability over longer spans, this size introduces a central beam between the posts for enhanced structural integrity.

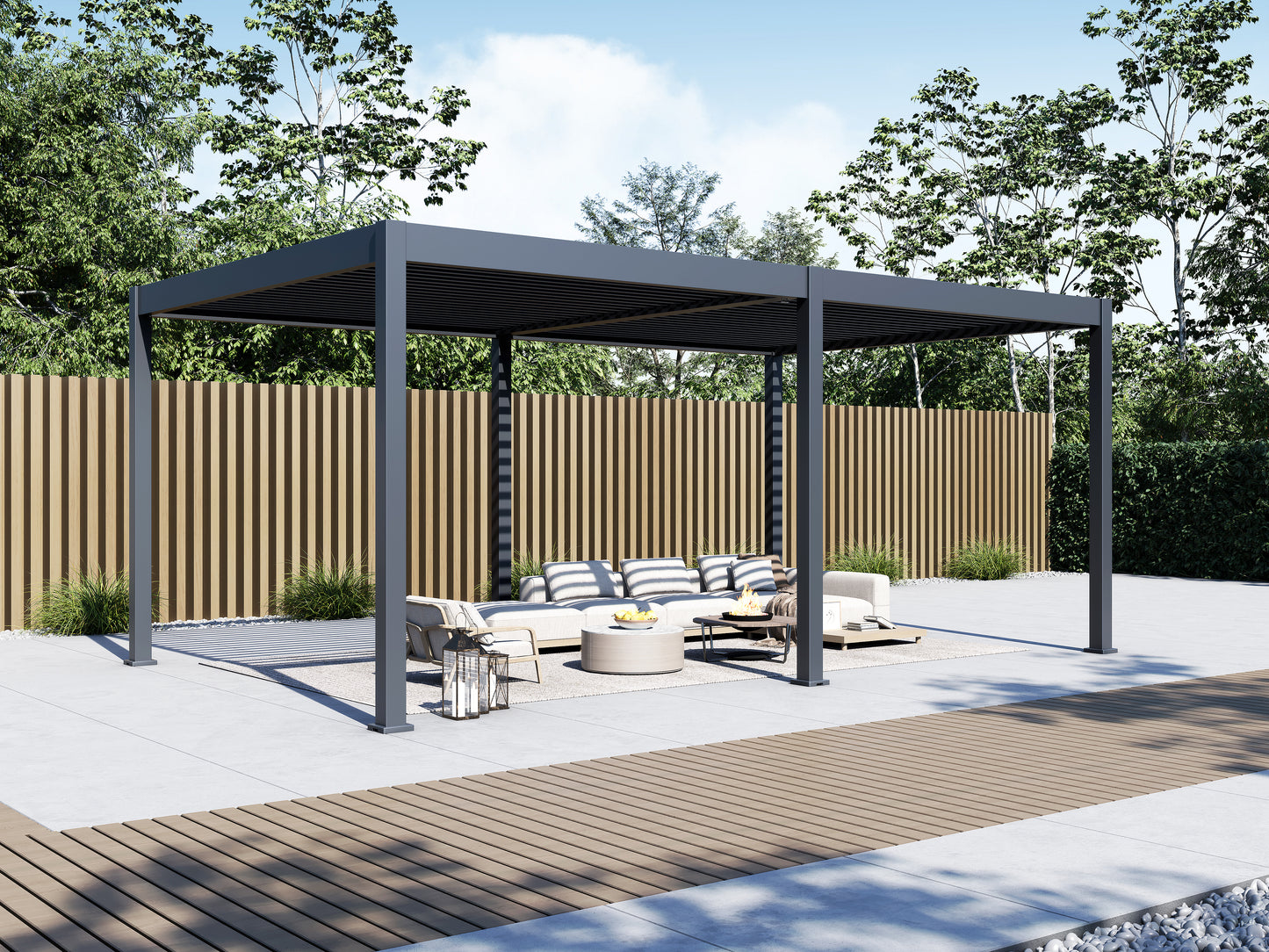

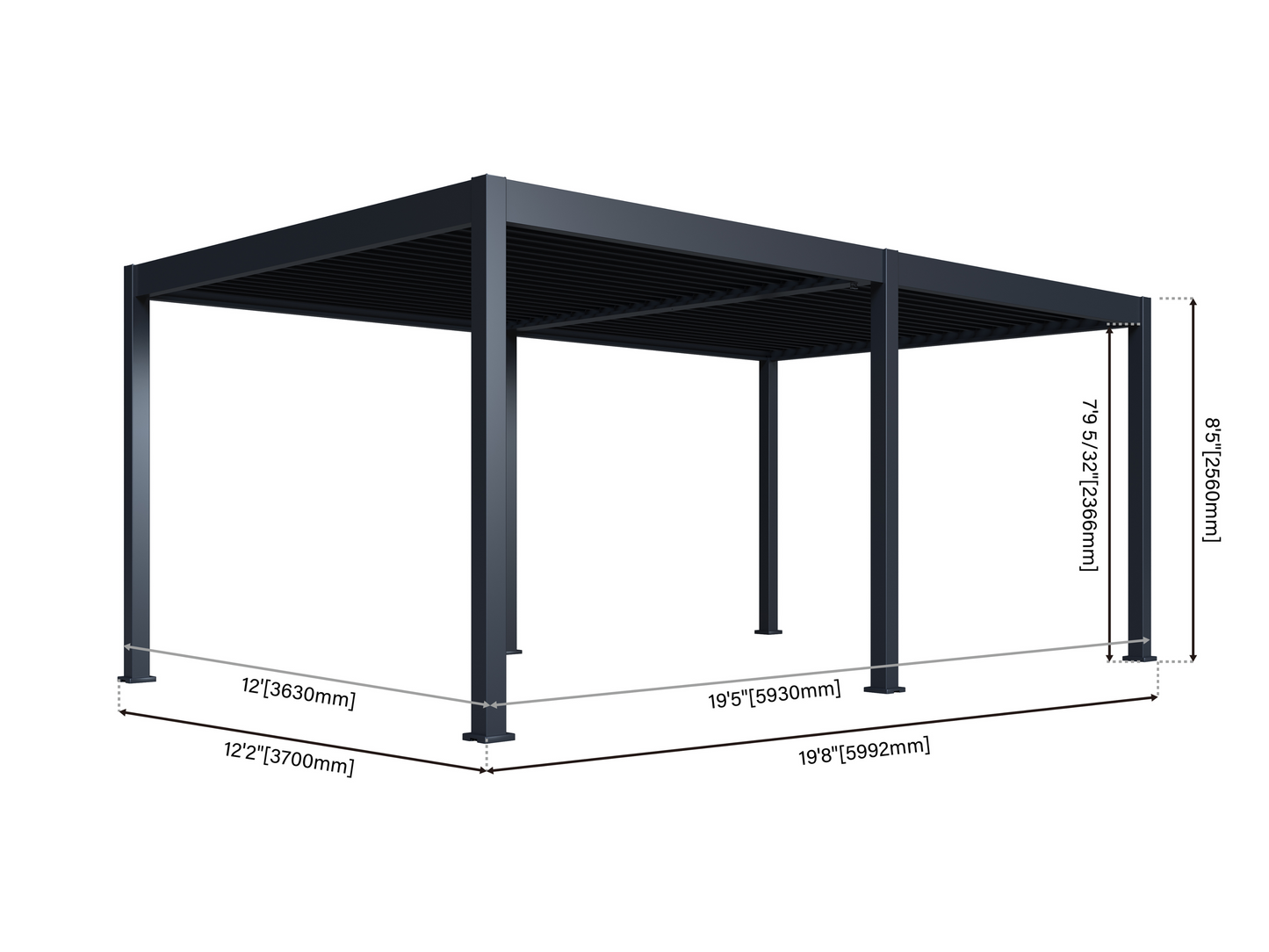

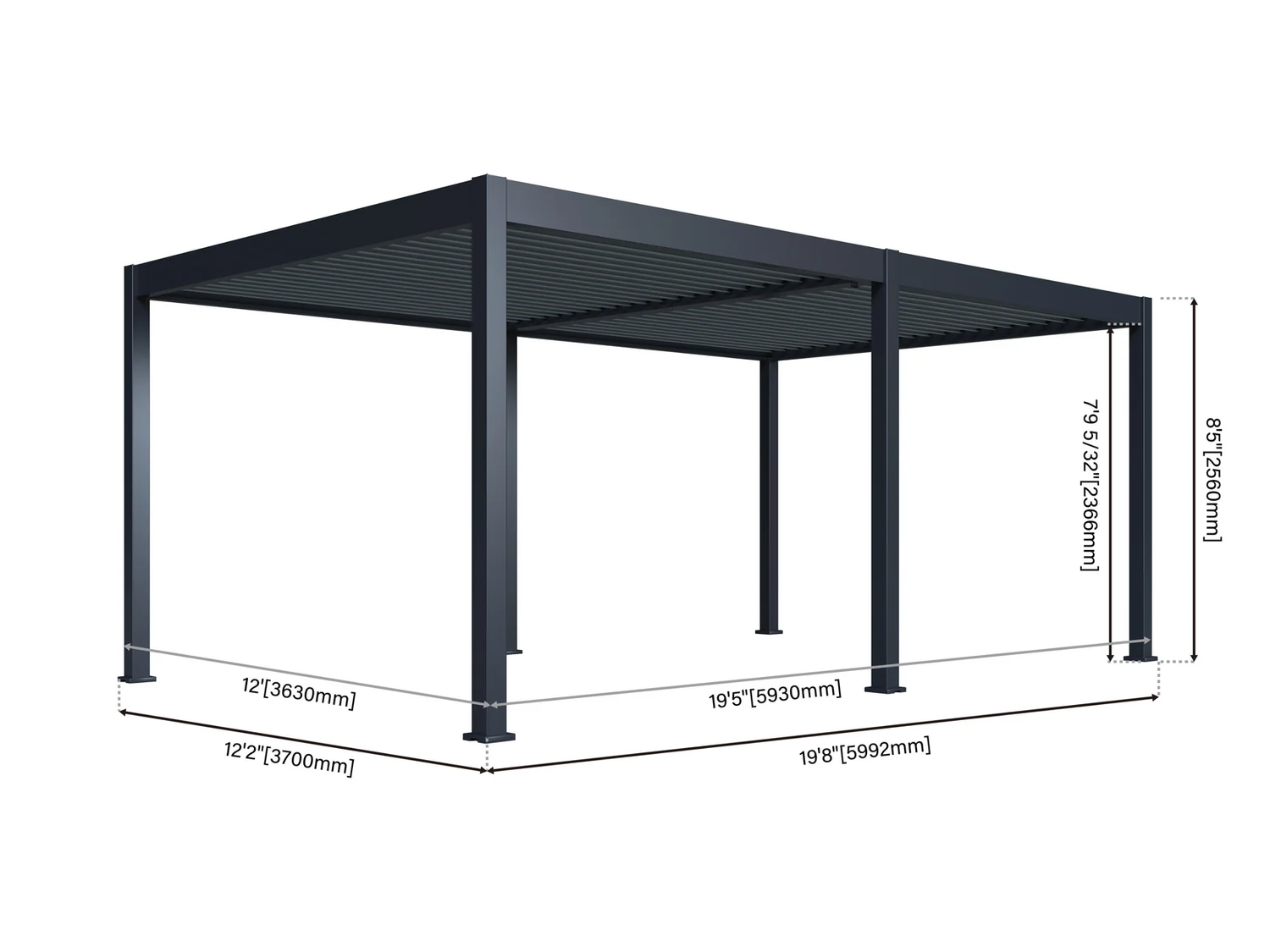

12’ x 20’ Dimension
Built with 6 posts and a central support beam.
Ideal for larger spaces, this configuration adds two extra posts and a reinforced rail for superior strength and balance across extended widths.
Standard size with 4 structural posts.
Perfectly proportioned for patios or smaller outdoor spaces.
Enhance your Grand Tuscan
-
Single Wind Screen for Louvered Pergola
Regular price From $1,359.15 USDSale price From $1,359.15 USD Regular priceUnit price / per$1,599.00 USDSale Sale -
Single Adjustable Shutter Panel for Louvered Pergola
Regular price From $559.30 USDSale price From $559.30 USD Regular priceUnit price / per$799.00 USDSale Sale -
15% OFFSingle Sliding Glass Door
Regular price From $1,954.99 USDSale price From $1,954.99 USD Regular priceUnit price / per$2,299.99 USDSale Sale -
15% OFFSolid Composite Privacy Wall
Regular price From $1,189.99 USDSale price From $1,189.99 USD Regular priceUnit price / per$1,399.99 USDSale Sale
Frequently Asked Questions
What is the difference between the Lugano and Grand Tuscan models?
The Lugano and Grand Tuscan louvered pergolas share a similar structure but differ in a few key design elements. The Lugano features a sleek two-tone finish with double-panel aluminum louvers that create a flat roof appearance. In contrast, the Grand Tuscan offers a uniform dark gray look with single-panel steel louvers for a more streamlined aesthetic.
How much weight can the center beam hold?
The reinforced middle beam on the 12'x14' and 12'x20' sizes includes a hook for hanging items up to 80 lbs. (accessories not included)
What is the warranty on the Grand Tuscan?
The Grand Tuscan comes with a 4 year limited warranty, however you can extend your warranty for an additional 1 year when registering here.
Is the Glow Pendent Heater compatible with the Grand Tuscan Pergola?
The Grand Tuscan Pergola includes a center beam in the 12'x14' and 12'x20' sizes. However, the 10'x12' size does not have a center beam, so it is not compatible with hanging the Glow Pendent Heater.
Do you offer financing or payment plans?
Yes, we offer financing and installment payment plans through ShopPay. This allows you to buy now and pay later with ShopPay at your own pace.
Extend Your Warranty
Register your Grand Tuscan today and enjoy an additional 1 year of coverage, bringing your total warranty to an impressive 5 years of protection and peace of mind.
